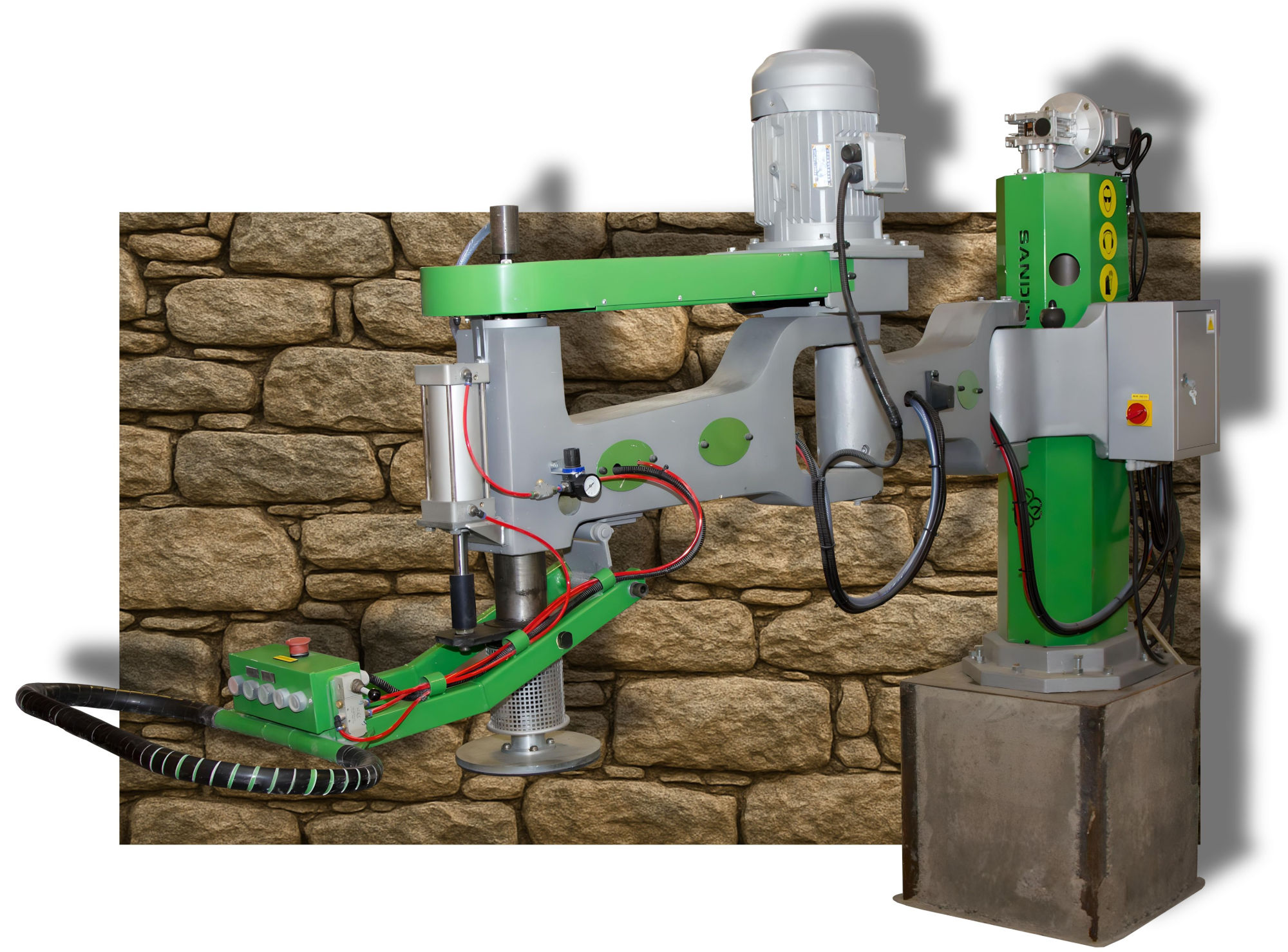

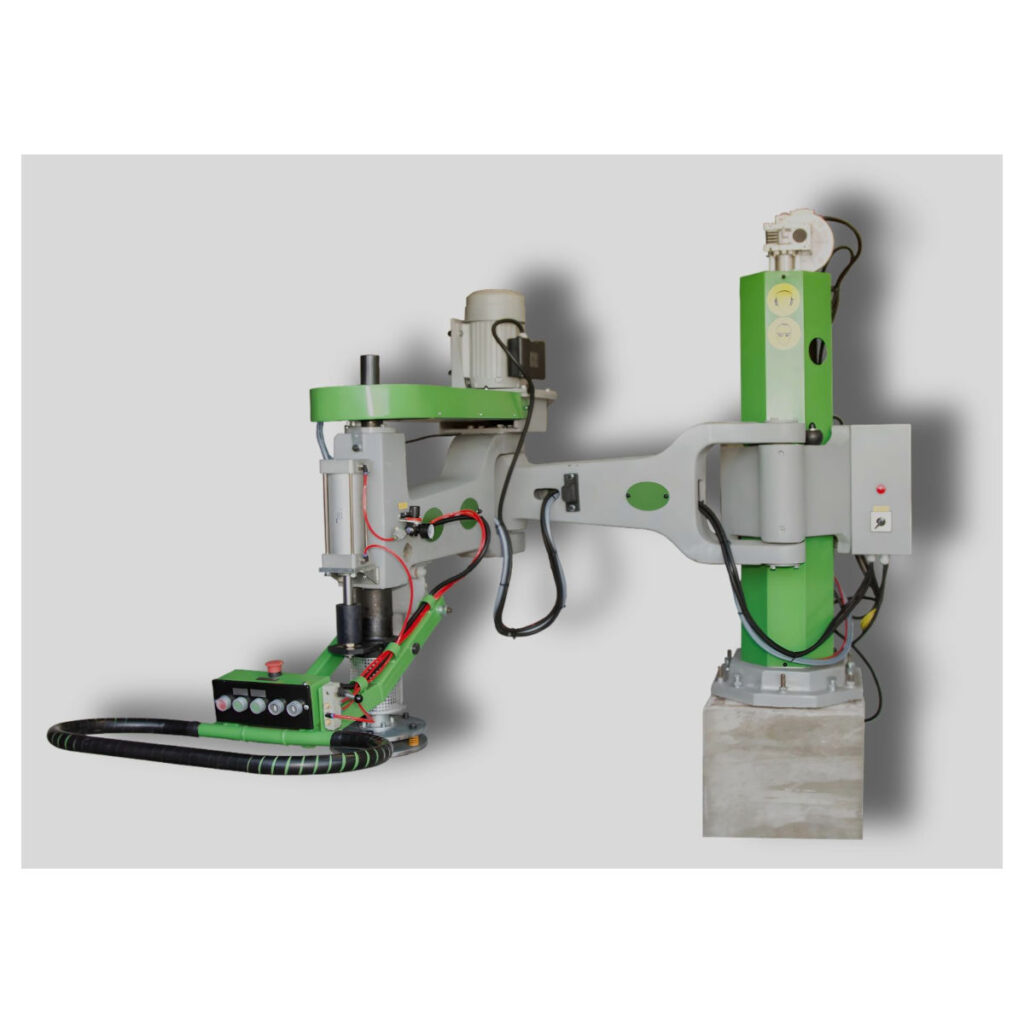

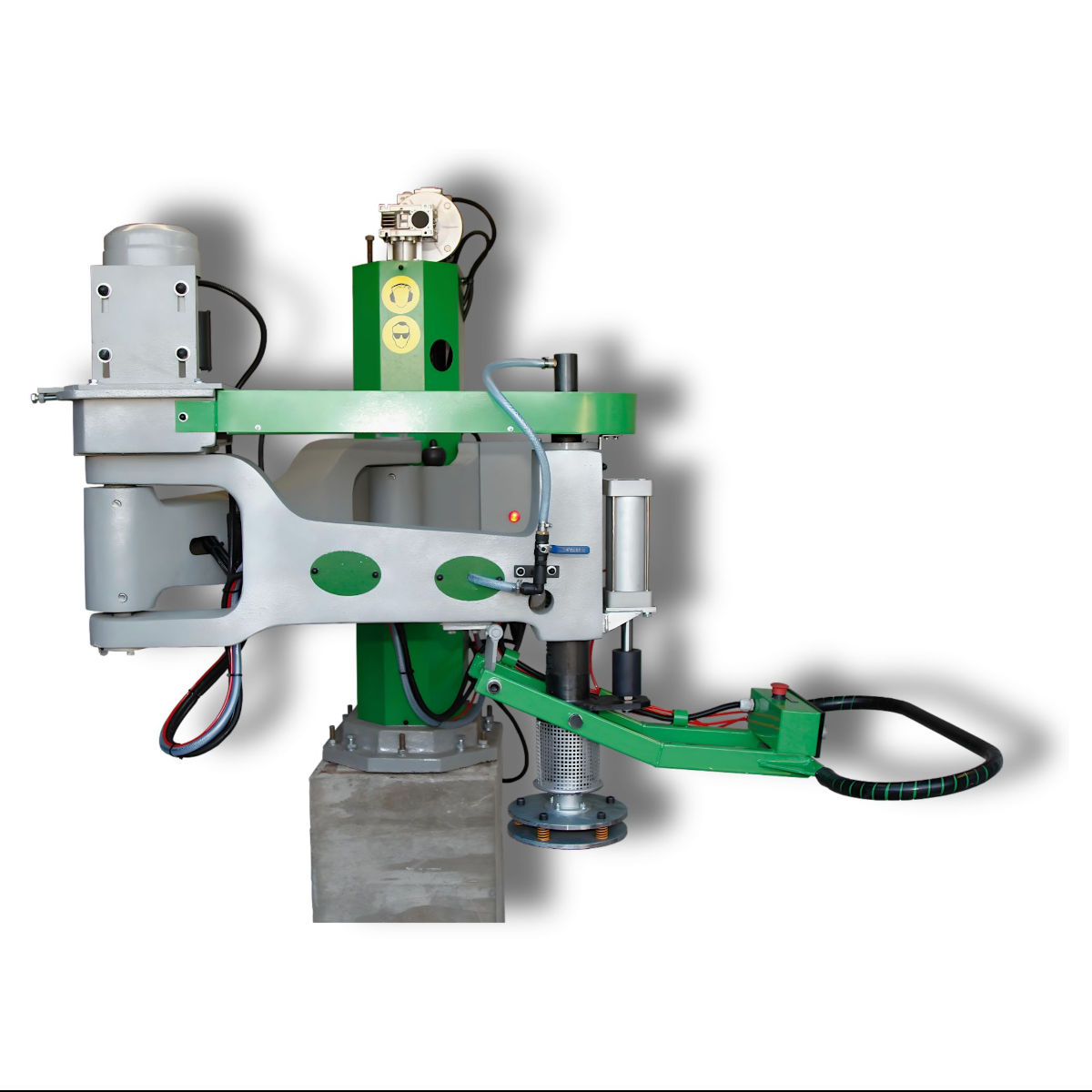

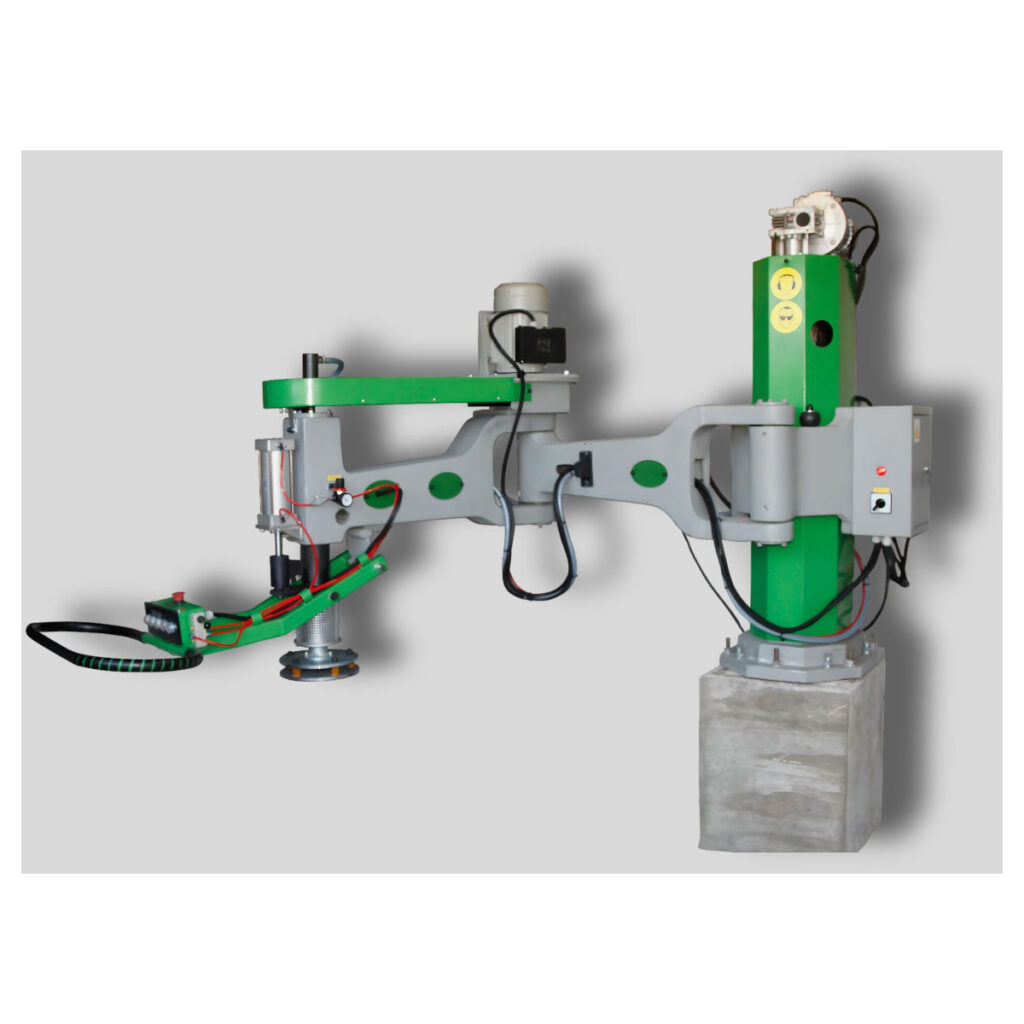

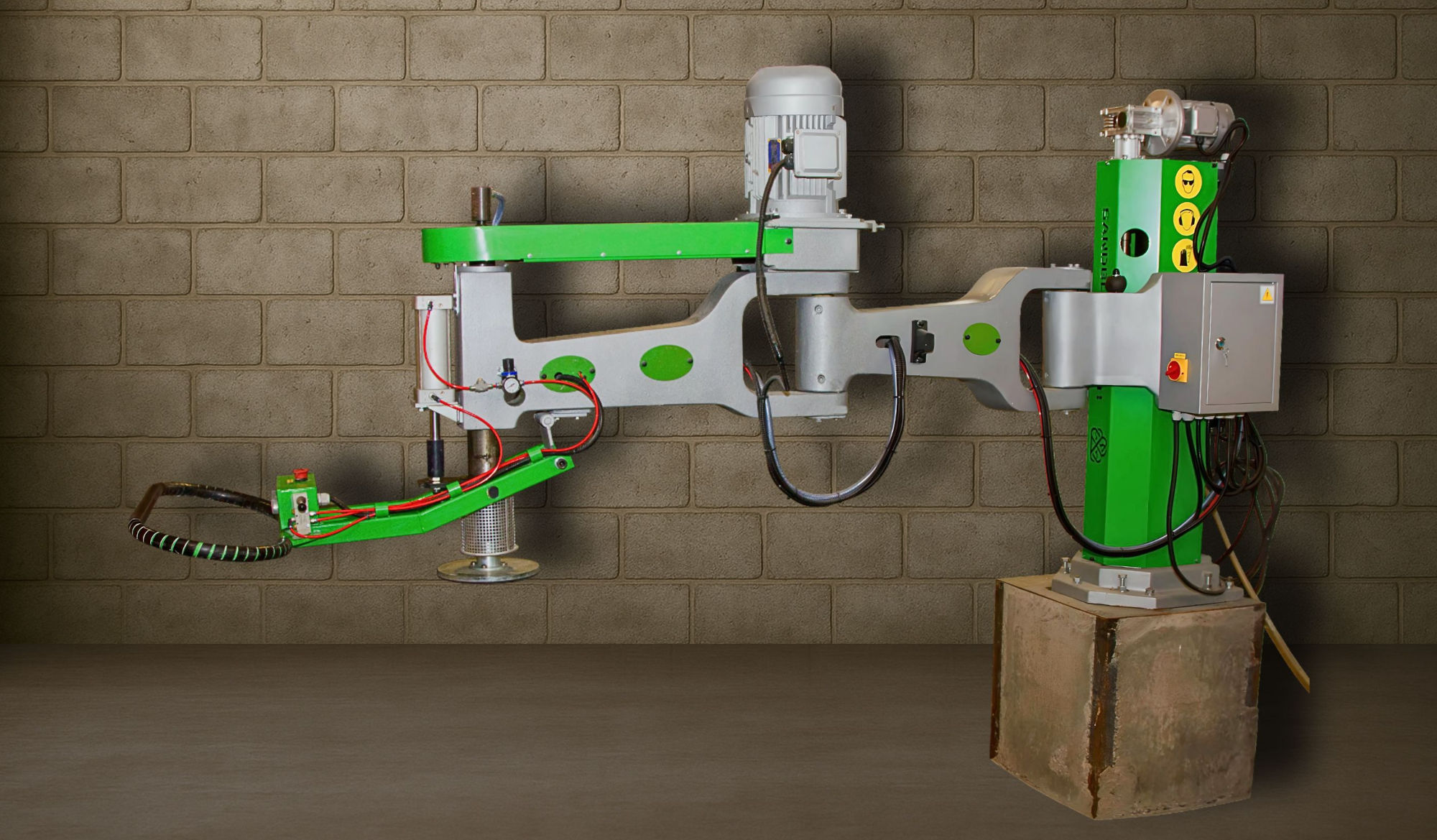

Column polisher SB Gloss (single phase powered)

IN Column polisher SB Gloss (single phase powered), Column polishers, Machines

Description

A column polisher is part of the basic equipment of a stone workshop and every tombstone stonemason would like to have it. Unfortunately, in Ireland, in many places there is still no access to 3-phase electrical power or it is very expensive.

Power

240V/4 KW

Speed

1200 rpm

Tool Pressure

Pneumatic

Bonus

Core bit adapter

Additionally

We have developed a single phase powered (240V) polisher especially for our Irish customers. For technological reasons, it has only one rotational speed, but it can be successfully polished to a high gloss any granite and other slabs.

Additional technical advantages and TECHNICAL SPECIFICATIONS

The advantage

– The advantage of the SB Gloss polisher is its stable and heavy construction made of cast iron. The range of the arm allows polishing large surfaces. The machine, thanks to its compact design and reliability, will satisfy even the most demanding customers.

The equipment

– The standard equipment includes a pneumatic clamp, which allows the operator to work more comfortably. Thanks to this solution, we no longer have to press the tool against the stone by hand, because the machine will do it for us.

Accessories

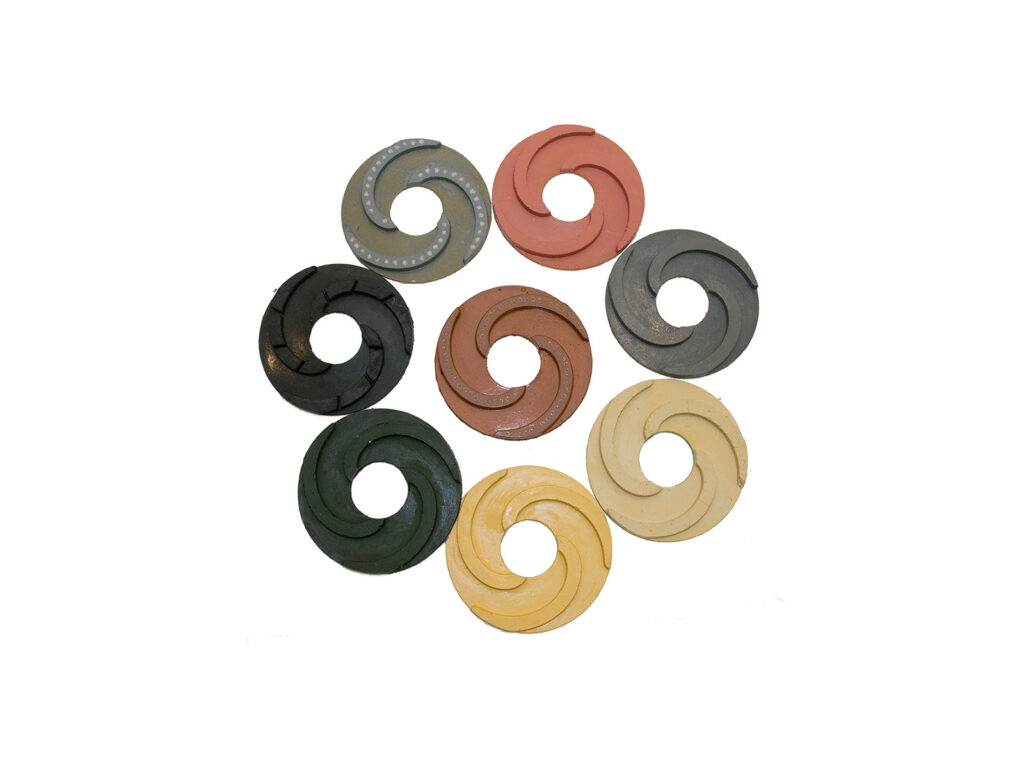

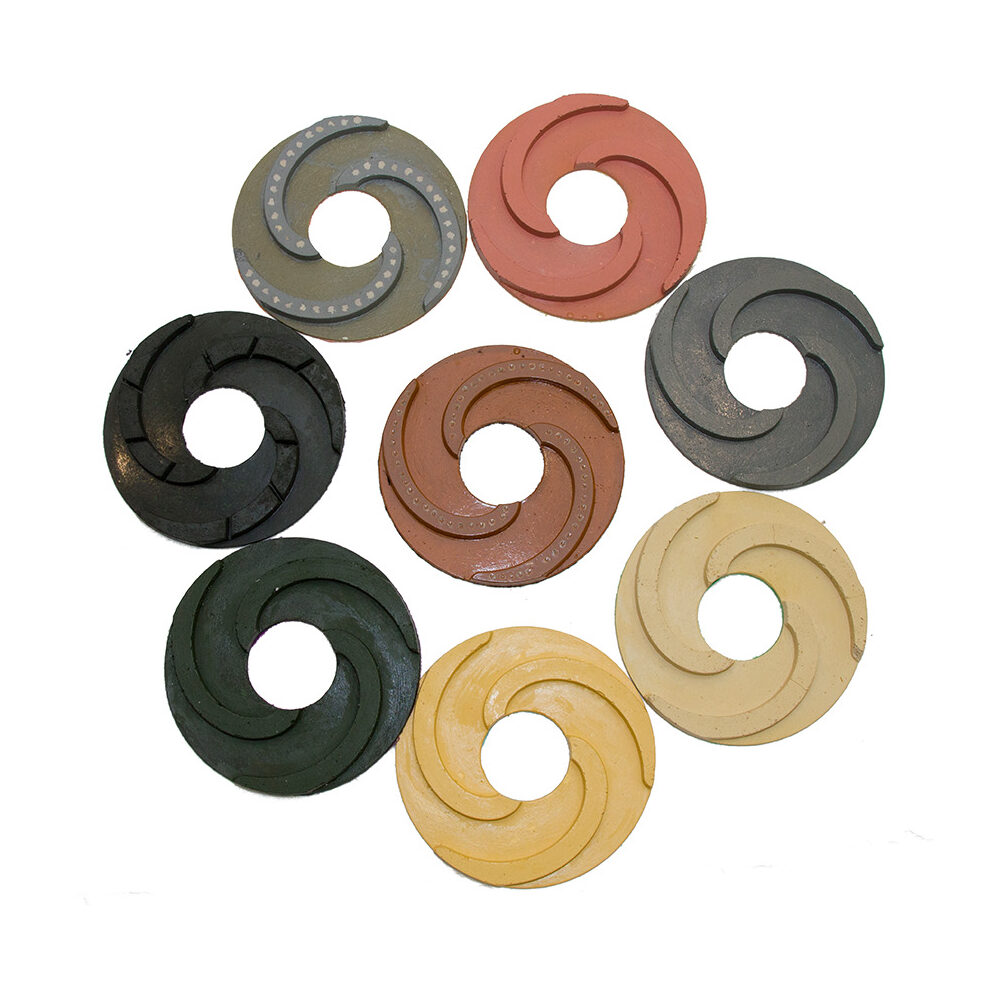

– Additionally, the machine is equipped with an adapter for stone core drill bits and 5 pcs of velcro polishing disc tool.

Before installing the machine, the customer is required to pour the foundation to put the fixing anchors in it.
The technical drawing of the foundation and anchor is provided by the seller.

TECHNICAL SPECIFICATIONS

– Power supply – 240V / 50Hz
– Motor power – 4 kW / 5.5 HP
– Up and down adjustment – 700 mm
– Spindle speed – 1200 rpm
– Tool pressure – pneumatic
– Bearings – SKF
– Arm range – 2600 mm
– Machine weight – 900 kg
– Machine dimensions – 3000 x 1700 mm
– Warranty – 12 months
